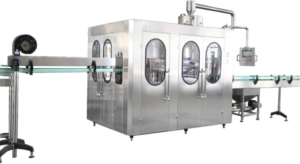

500ml Bottle Rinsing Filling Capping Machine

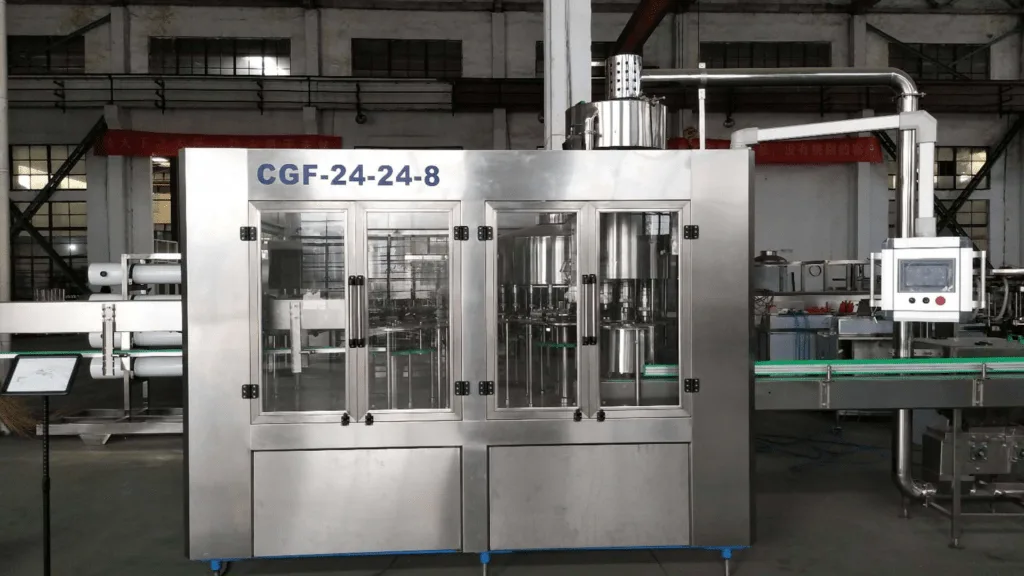

24-24-8 500ml Bottle Rinsing Filling Capping Machine
Production Description
Haoguan Machinery offers small bottled water filling machine is an all-in-one solution for modern water production lines, perfectly designed for 250ml to 2L bottles.
It seamlessly integrates rinsing, filling, and capping to ensure maximum efficiency and hygiene. Built with food-grade stainless steel, it guarantees safe and pure water while maintaining low maintenance and long-lasting durability. The machine features a user-friendly control panel, making operation simple even for beginners. Its high-speed filling system ensures consistent volume with minimal spillage, improving productivity for small to medium-scale bottling plants. Energy-efficient and versatile, this water filling machine supports various PET or glass bottles and is ideal for mineral water, purified water, or flavored water production. Reliable, safe, and efficient, it is the perfect choice to enhance your bottling operations and achieve superior water quality.
Feature
This machine has a compact structure, perfect control system, easy to operate and highly automatic degree.
The parts contact with product is made of quality SUS304 food grade, anti-corrosive, and easy to clean.

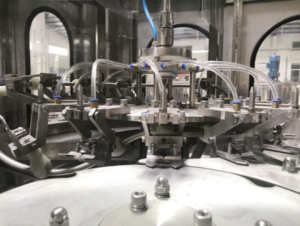

Equipped with perfect clean management system to ensure the bottle clean.

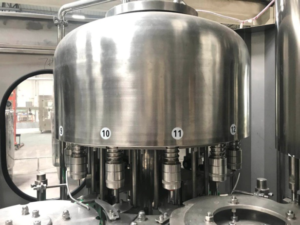

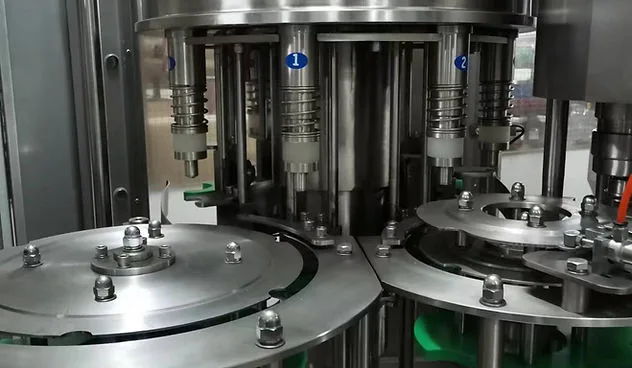

By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

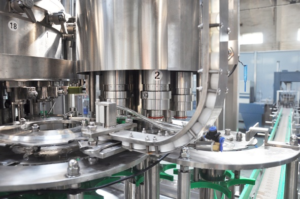

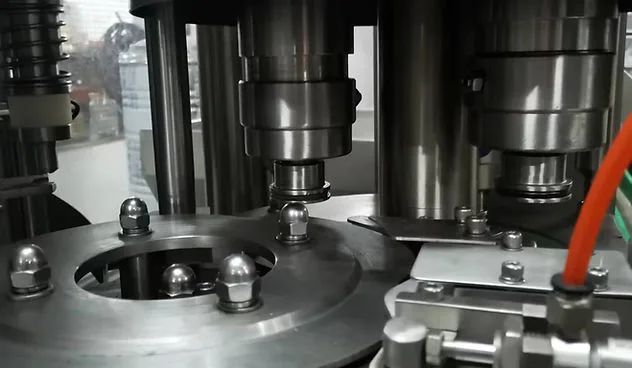

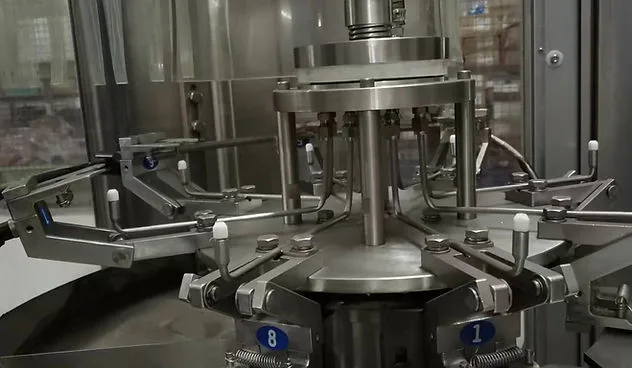

The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

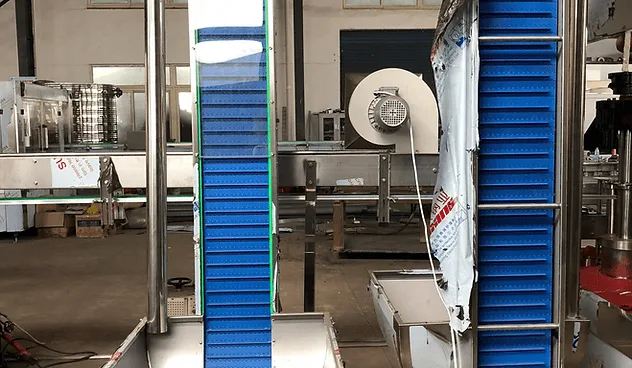

This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
Our Advantages
- User-Friendly
- Food Grade Material
- High-Efficiency
- Energy Efficiency
- Low Energy Consumption
- Advanced Technology
Pre-sales Advice
Our Pre-sales Consultation Services Are Designed To provide You With All The Information.
Installation Service Provided
Online Service And Enginner Oversea Service
Deliver Time
20-60 Days After Receiving The Deposit
Main Technical Parameters
Item | CGF12-12-1 | CGF8-8-3 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-10 |
Production Capacity (BPH) | 1000-2000 | 2000-3000 | 4000-5000 | 5000-6000 | 8000-10000 | 12000-15000 | 16000-18000 |
Washing head | 12 | 8 | 16 | 18 | 24 | 32 | 40 |
Filling head | 12 | 8 | 12 | 18 | 24 | 32 | 40 |
Capping head | 1 | 3 | 6 | 6 | 8 | 10 | 10 |
Main motor power (KW) | 1.0 | 1.5 | 2.2 | 3.5 | 4.5 | 6 | 7.5 |
Packing size (mm) | 2000*1000*1800 | 2200*1200*2000 | 2400*1650*2200 | 2600*1920*2250 | 3100*2300*2250 | 3800*2800*2300 | 4600*2800*2350 |

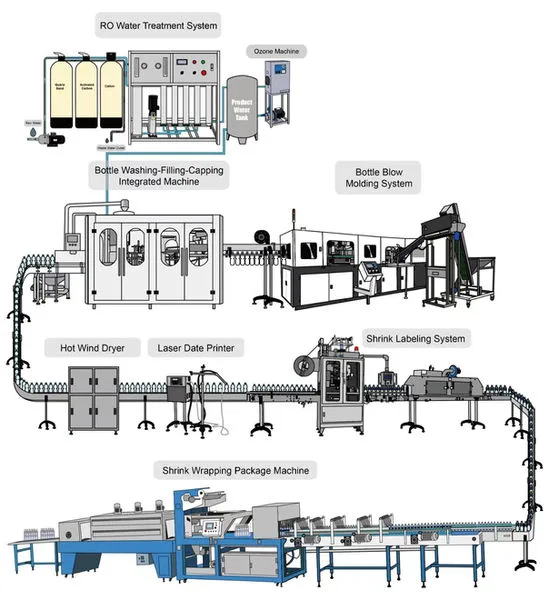

Complete Line Diagram
